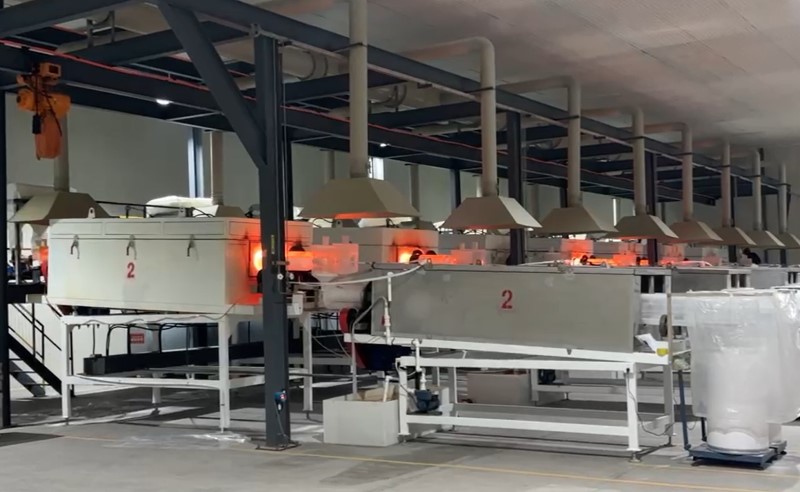

HPQ sand calcination production line

What is a HPQ sand calcination production line for sale？

The high purity quartz sand（HPQ） calcination production line is a calcination system used for high-temperature calcination and purification of high-purity quartz sand. During the calcination process, hydrogen chloride gas is introduced to complete the purification of high-purity quartz sand. This high-purity sand calcination production line is dedicated to high-purity sand production.

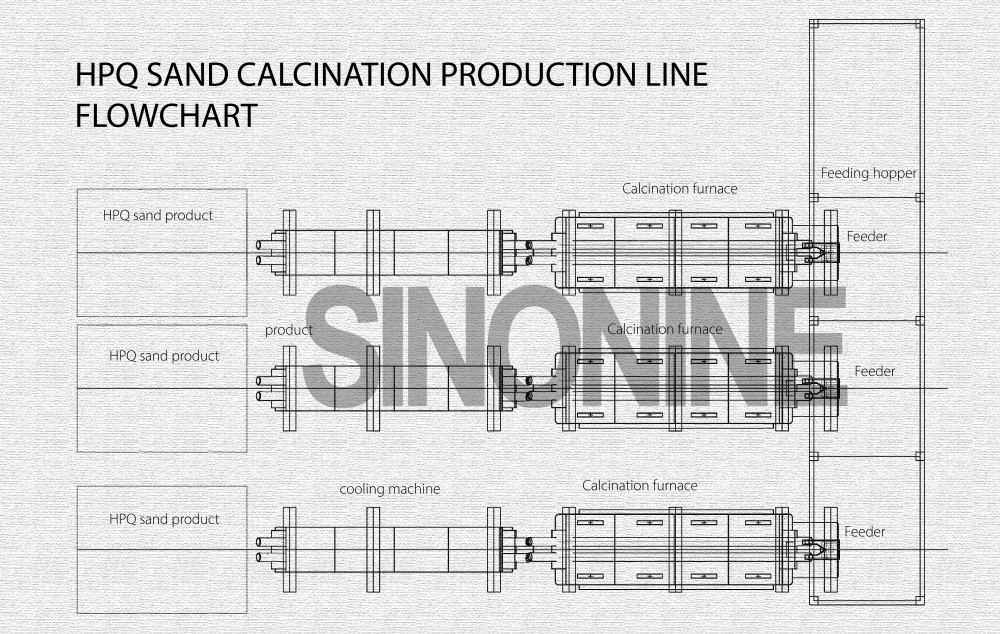

The high-purity sand calcination production line adopts an electric heating high-temperature calcination furnace, and the cylinder is made of double high-purity quartz tubes to avoid any impurity pollution during the quartz sand calcination process. During the calcination process, hydrogen chloride gas is introduced and then purified before being discharged into the atmosphere. The calcined high-purity quartz sand is cooled by a cooling machine and then packaged into finished products.

Features of HPQ sand calcination production line

1. Simple structure, high drying efficiency and low energy consumption.

2. High-temperature sand drier can adapt to a wide range of temperatures, and the maximum temperature can reach 1250℃.

3.High-purity quartz sand carrier is high-purity quartz tube, which can continuously operate at high temperature for a long time to ensure product quality.

4.The tilt angle and rotating speed of the body are adjustable, and the retention time of materials in the furnace body can be adjusted according to the production needs.

5. The body of the cooler is made of quartz tube and equipped with spray cooling pipes.

6. High-temperature zone to cooling zone have be designed without exposed connection to reduce pollution during process.
